What happens when a grading laser stops working properly in the middle of a construction job? A damaged cable, poor connection, or setup issue can affect the machine control system and bring work to a halt. Instead of guessing which part needs attention, contractors can start by checking the system’s key connections and identifying the function that is affected.
This is where dual-grade laser system troubleshooting can provide a clear starting point. Grading laser problems can affect how a machine receives power, communicates elevation error information, or controls the hydraulic valve.
Since power, sensor, and valve cables each have a different role, knowing where to look first can make the problem easier to understand. With that in mind, let’s look at common issues that can disrupt a grading system and the checks that can help.
Start With the Cable Linked to the Problem

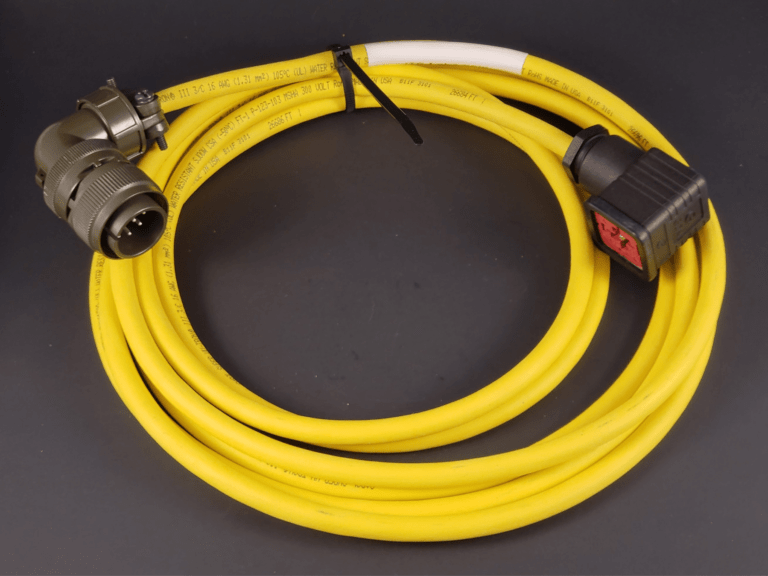

Machine control systems use three main cable types. Power cables supply the system, sensor cables carry elevation error information from the laser receiver to the panel, and valve cables control the hydraulic valve.
This difference gives contractors a useful place to begin. If the issue involves communication with the laser receiver, the sensor cable may need attention. If the concern involves power or valve control, the related cable should be checked instead.
Spot Cable Damage Before It Causes Trouble
Cables need enough length to allow the machine to move freely. Too much strain can lead to stretching, pinching, or tight bending. Cables should also not be clamped to hoses or pipes that may operate at high temperatures.
A regular visual check can help identify signs of wear before they become a larger concern. If damage appears, avoid making a repair unless you know the correct method. A poor connection can damage the control system, so proper technical support is important.
A Clear Approach to Laser Troubleshooting
When a basic inspection does not reveal the cause, dual-grade laser system troubleshooting may require a closer look at the setup and system accessories. Start by noting which function is affected and what the system is doing.
This information can help a technician focus on the right area. It also avoids replacing parts simply because they appear related to the problem. A clear description of the issue can make the next step more useful.
When Grading Laser Troubleshooting Services Can Help
Some grading laser problems are not easy to identify through a visual inspection. In these cases, grading laser troubleshooting services can help with setup and field troubleshooting.
Support is available for machine control systems from Apache, Futtura, Laser Leveling, Laser Alignment Inc., and Spectra Precision. Repair services are also available for laser-guided machine control systems, along with system accessory replacement. When the cause remains unclear, technical support can help determine what needs attention.
Apache Laser Control Troubleshooting for Supported Systems
Apache is one of the supported machine control system brands. Contractors can get help with setup and field troubleshooting for supported Apache systems.
For Apache laser control troubleshooting, useful details include the affected function, visible cable condition, and any changes noticed during operation. Sharing these details can give a technician a clearer starting point and help keep the troubleshooting focused.
Simple Checks Before Calling for Support
A few basic checks can provide useful information:
- Look for visible cable wear or damage.
- Check for stretching, pinching, or tight bends.
- Make sure cables have enough length for machine movement.
- Keep cables away from hot hoses and pipes.
- Inspect connections carefully.
- Avoid repairing damaged cables unless you know the correct method.
These checks can help contractors explain the problem without making unnecessary changes to the system.
Keep Small Problems From Causing Bigger Delays
A grading laser issue does not always mean the entire machine control system has failed. The cause may be linked to a cable, connection, setup, or accessory. Checking the relevant area first can give contractors a better understanding of what is happening.
When the issue needs more than basic field checks, experienced support can make the next step clearer. Experienced repair technicians can provide support for the listed machine control systems and help with repairs, setup, field troubleshooting, and system accessories.
FAQs
1. What are the main cables used in a machine control system?
Power cables supply the system, sensor cables carry elevation error information from the laser receiver to the panel, and valve cables control the hydraulic valve.
2. Does JTS Lab support Apache machine control systems?
Yes. Apache is one of the machine control system brands supported by JTS Lab.
3. What should contractors do when a cable is damaged?
Avoid attempting a repair unless you know the correct method. Poor connections can damage the control system.
